ELECTRICAL NETWORKING

An electrical system, within the context of a building, is a network of conductors and equipment designed to carry, distribute and convert electrical power safely from the point of delivery or generation to the various loads around the building that consume the electrical energy.

ELECTRICAL NETWORKING, BMS, ELV SYSTEMS

In the Domain of Electrical Networking we provide perfectly efficient detailed designs that economize the use of electrical energy, minimize the initial investment but meet the necessary requirements of our clients. Our experts design electrical networks that ensure simplicity, reliability, sustainability, minimal environmental impact are cost effective.
Our power line wiring design solutions are for Residential homes, Multi-storied Buildings, Offices, Commercial Building Spaces, Industrial Buildings, Factories, and Workshops, Outdoor Electrical Networking, special buildings etc.

OUR EXPERTISE IN ELECTRICAL NETWORKING SERVICES INCLUDES

  • Protective relay coordination.

  • Power Management System.

  • Alternative source of energy (Solar, Wind etc).

  • Inverter and voltage stabilizing system design.

  • Prohibition of Emergency Power Supply.

  • Power line system modernization with updated technologies in currents standards.

  • Lightening Protection System Designing

OUR DESIGN SERVICE PROVIDES

  • Outline and Detailed Electrical Layout

  • Single Line Diagram (SLD)

  • Power-Line Diagram

  • Earthing Planning and Drawing

  • UPS and Generators

  • Power Engineering Network/System Analysis for efficiency

  • Independent design checks and reviews

  • Bill of Quantity (BoQ) generation

  • Raster Diagram generation

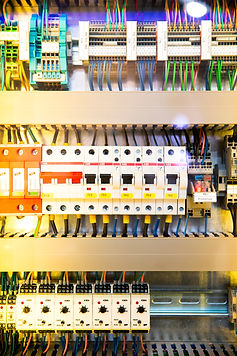

Image by Markus Spiske

Building Management System (BMS)

A building management system (BMS), otherwise known as a Building Automation System (BAS), is a computer-based control system installed in buildings that controls and monitors the building's mechanical and electrical equipment such as ventilation, lighting, power systems, fire systems, and security systems. The world is becoming smarter and greener by the implementation of high end automation systems. Building Management Systems leads to more optimized control of resources, high end security, and ease of access from anywhere. We are able to fill the industry requirements with qualified BMS technicians with our special drawing and planning skills.


Within BMS we also do designing of:

1. Energy Information Management Techniques - Energy Management Information Systems can enable significant energy savings, often with rapid payback. Businesses are continually learning how to apply these technologies which include advanced energy information systems, benchmarking and utility tracking tools, equipment-specific fault detection and diagnostic systems, automated system optimization, and building automation systems.


2. Environmental Control - In addition to architectural drawings, every project needs a number of environmental systems [plumbing, heating and ventilating, air-conditioning, and electrical], added to which are the life-safety systems [sprinklers, alarms, detectors, and others of a mechanical nature; e.g., telephones and pneumatic tubes]. The sequence in which these drawings are done has a different orientation than the architectural drawings. In these systems, drawings show the building, and the various room areas, as shells in which the various environmental system equipment and devices are located. The complete array of systems must be included and fully delineated

Extra Low Voltage Systems (ELV)

ELV stands for Extra Low Voltage systems. This includes all the systems in building which operate on low voltages like telephone, data transmission, LAN, WAN, CCTV, fire alarm, public address, master clock systems etc. Every building requires these kinds of systems.

We can help you integrate both BMS & ELV Systems for existing and new building – economically and efficiently. Our custom designing solutions will simplify facility management and help you achieve control over your energy costs.

BUILDING MANAGEMENT SYSTEM, BUILDING AUTOMATION SYSTEM, EXTRA LOW VOLTAGE SYSTEM SPECIALTY SERVICES

IoT & HOME AUTOMATION

Image by Dan LeFebvre

By 2020, 50 billion devices will be connected to the Internet. Are you there yet?

SURVEILLANCE SYSTEM​ / CCTV NETWORK DESIGNING

Image by Paweł Czerwiński

Planning / Designing & Suggesting of Camera (Analogue / IP) Surveillance, CCTV network designing with positioning.

ETHERNET OVER POWERLINE (EoP)

Tenda_Wireless_Gigabit_Kit_Ethernet_Netw

Ethernet over Powerline (EoP) implementation with Powerline Adapters.

VARIOUS ELECTRICAL LINE DIAGRAMS

Image by Juan Jose Porta

Electrical Line Diagrams of different Vehicles and Electrical Appliances/Systems/Equipments.

IT INFRASTRUCTURE

Image by Thomas Jensen

Planning / Designing & Suggesting of Wireless Networking Solution

WATER MANAGEMENT SYSTEM

Planning / Designing & Suggesting better ways to manage water usage in a building, landscape or for harvesting.

TELEVISION NETWORKING

Image by Glenn Carstens-Peters

DTH (Direct to Home) Television network implementation with layout diagram.

COMMUNICATION NETWORKING

Image by Jordan Harrison

EPABX system (with or without IP) / Land Telephone and Broadband connection layout diagram. Video Door Phone Planning and network designing.

CENTRAL AUDIO SYSTEM NETWORKING (PA-BGM) AND ENTIRE CONFERENCE SOLUTION

Image by Michele Tardivo

Central Audio System Networking with Public Addressing Solution as per client's requirement and building design.

SECURITY AND OTHER ACCESS CONTROL SYSTEM

Image by Mauro Sbicego

Planning / Designing & Suggesting of Security, Access Control System (Standard or High-end).

SMOKE & FIRE DETECTION, PROTECTION AND ALARM SYSTEM

Planning / Designing & Suggesting of emergency protection (exmpl: smoke, fire detection and alarm, etc) system networking.

LIGHTENING PROTECTION SYSTEM

Designing lightening protection system for a building keeping all the parameters in the count.
